IWZB Self-priming booster pump
Category：
Summary:
Mainly used for well pumping,river pumping,flowing rain water collection,pumping water out from cellars,garages,basement.
Keywords:
pump deep water
- Details

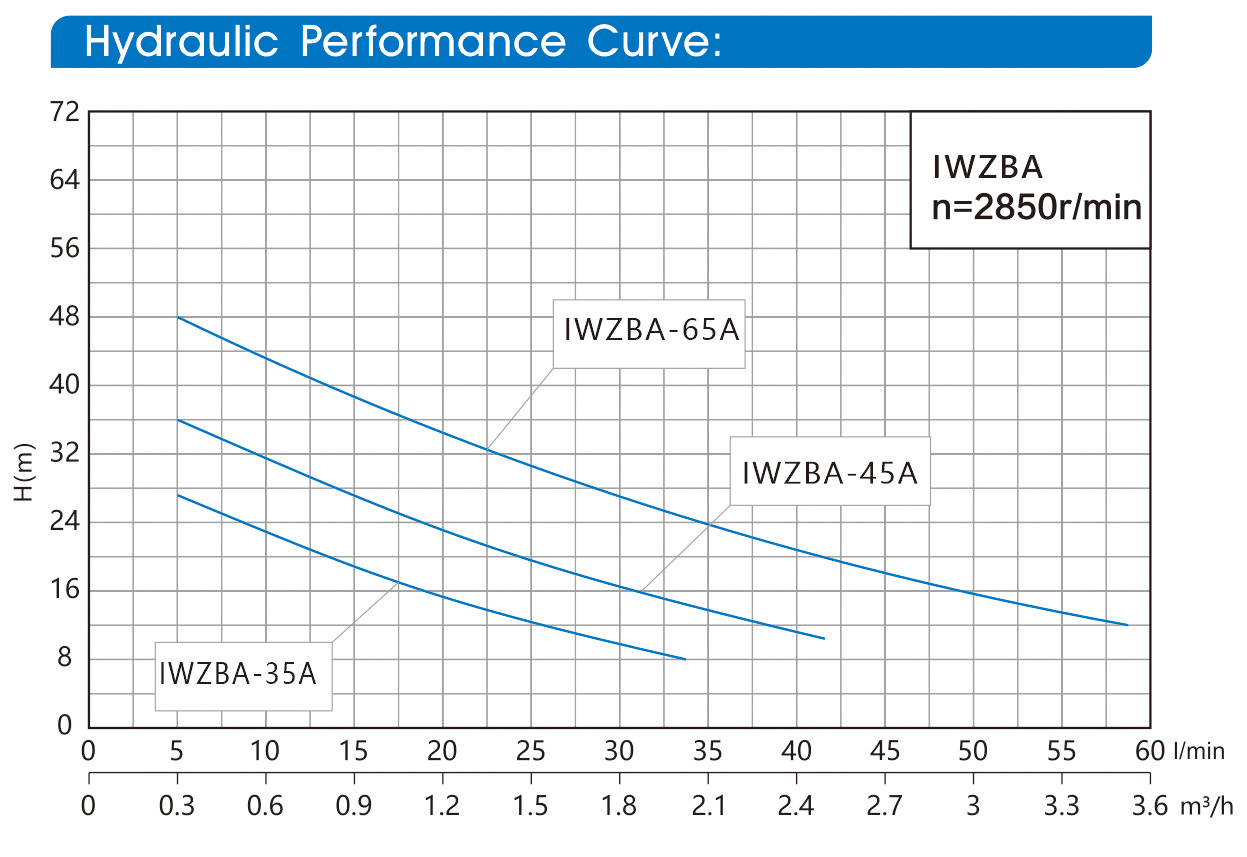

- Graph
- Technical
-
- Commodity name: IWZB Self-priming booster pump
APPLICATION
•Clean water, non-aggressive liquid without sand or other solid impurities.
•Bigger suction with self-priming.
•Low power.
Material
•Pump body: Cast iron.
•Motor support: Aluminum / Cast iron.
•Impeller: Brass.
•Motor shaft: Stainless steel or Cs45#.
•Mechanical seal: Ceramic-Graphite,+100% Copper Winding.
OPERATING CONDITIONS
•Suction lift up to 8 m.
•Liquid temperature up to +40'C.
•Ambient temperature up to +40°C.
•Max. Working pressure: 6 bar.
MOTOR
•2 pole induction motor.
•Single phase 220v, 50/60Hz
•Insulation: Class B/Class F.
•Protection: IP 44.
•With capacitor and thermal overload protection -
-
Model
Power
Inlet Inch
Outlet Inch
Max Flow
Max Head
Max Suciton
Dim.
G.W.
Single-Phase
kW
HP
(m3/h)
(m)
(m)
(mm)
(kg)
IWZBA-35A
037
0.5
1" 1" 2
30
8
270x180x235
8
IWZBA-45A
0.55
0.75
1" 1"
2.5
40
8
285x185x260
10
IWZBA-65A
0.75
1
1" 1" 3.5
50
8
285x185x260
12
