WZBA Self-priming booster pump

Category：

Self-priming booster pump

Summary:

Mainly used for well pumping,river pumping,flowing rain water collection,pumping water out from cellars,garages,basement.

Keywords:

pump deep water

Get an inquiry

Back to list

Details
Graph
Technical

- Commodity name: WZBA Self-priming booster pump

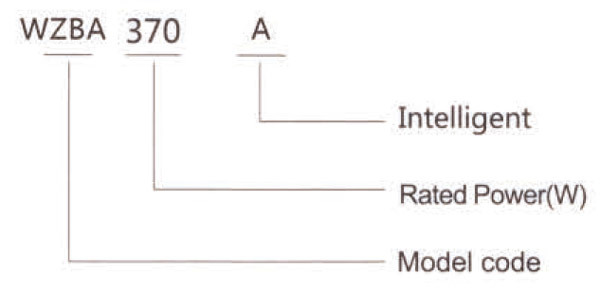

Model Instruction

Application Limits
Suction lift up to 8 m
Max. Working pressure 5 bar
Liquid temperature up to +90°C
Ambient temperature up to +40°C
Voltage fluctuations should not exceed 10% of rate value

Applications Fields
• Suitable for use with clean water that does not contain abrasive particles or other similar water of liquid.
• Widely used domestic water, automatic boosting, water tower supply, well water lifting, solar hot water boosting.

Features
• Compact design,easy installation
• Pressure and flow switch control automatically
• Pump body insert of stainless sheet 304
• Shaft extension is stainless steel CS45#
• The impeller of copper alloy
• High quality mechanical seal
• Intelligent control:Pump can supply stabilized water flow by automatically running. Through the water flow and water pressure data collected by flow switch and pressure switch, electronic unit control the pump running/stop, solve the frequently starting problems under low water flow,and completely inhibit frequently starting if water flows lower than 0.3m°/h.Time delay start: 3-seconds delay on start up to prevent electric transient surge
• Dry-Run protection:Pump shut down if no water flows past pump inlet after running 6 minutes, when there is water flow past pump inlet, pump restart.
• Scale prevention:Pump will automatically run 10 seconds for scale prevention once per 3 days among outage period.
• Electronic switch: Long service lffe,and eliminate the "da da noise caused by mechanical pressure switch

Motor
• Single phase motor copper wires,ou lt-in thermal protector fully enclosed motor shell
• Continuous service S1
• IPX4 class protection
• Class B insulation

Model	Power		Max. Flow (m³/h)	Max. Head (m³/h)	Rate head(m)	Max. Suction(m)	In&Outlet (Inch)	Din.mm (LxWxH)	G.W (kg)
Model	(KW)	HP	Max. Flow (m³/h)	Max. Head (m³/h)	Rate head(m)	Max. Suction(m)	In&Outlet (Inch)	Din.mm (LxWxH)	G.W (kg)
WZBA125A	0.125	0.17	1.8	24	1-20	8	V	295X235X315	9
WZBA250A	0.25	0.34	1.9	30	1-26	8	r	295X235X315	9.4
WZBA370A	0.37	0.5	2	36	1 32	8	r	295X235X315	9.7
WZBA550A	0.55	0.75	2.7	42	1.5-38	8	r	310X250X247	12.85
WZBA750A	0.75	1	2.8	50	1.5-46	8	1"	310X250X247	14.25
