KBZ stainless steel pump
Category：
Summary:
Mainly used for well pumping,river pumping,flowing rain water collection,pumping water out from cellars,garages,basement.
Keywords:
pump deep water
- Details

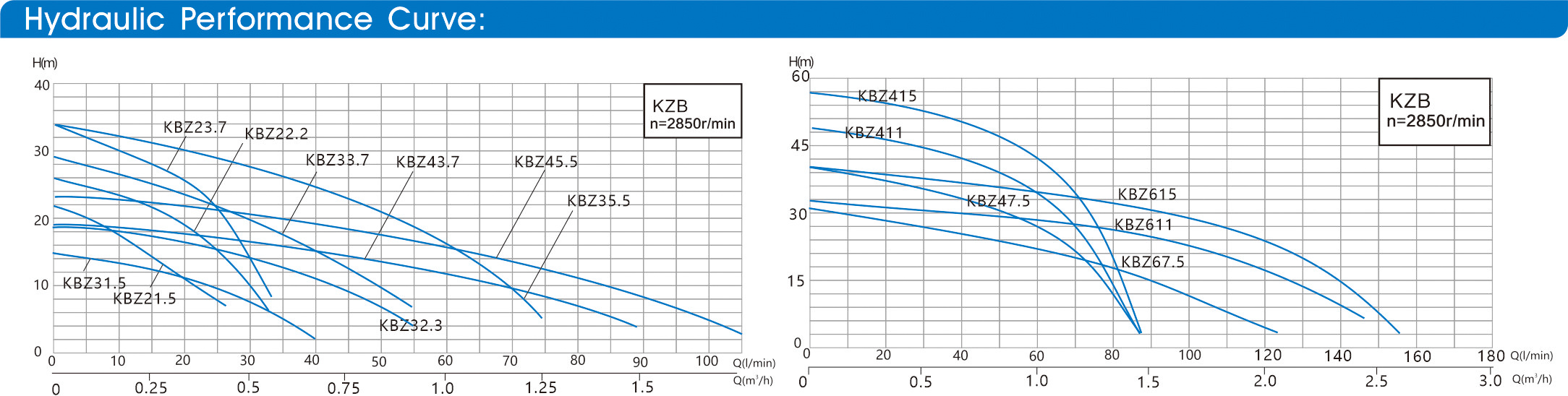

- Graph
- Technical
-
- Commodity name: KBZ stainless steel pump
APPLICATION
• Civel engineering
• Mines,quarries,coal ore & slurries
• Sewage treatment plants
• General pumping purposesSPECIFICATION
• Capacity:up to 160m /h
• Head: up to 57 meters
• Power: 1.5kW(2HP) to 15kW(20HP)
Power supply:three phase 380V ‡ 10%, 50Hz
380V ‡ 10%, 60Hz
• Insulation class:F
• Protection class:IP68
• Cable length:8m
• Water temperature: up to 40 C
• Max.water depth: 25mSPECIAL FEATURES ON REQUEST
• Other voltages
• The length of cable is optional -
-
Model
Outlet (mm)
Motor Power
Rated current (400V)
Rated capacity
Rated head
Max capacity
Max Head
Impeller Passage
KW
HP
A
m3/h
m3/min
m
m3/h
m3/min
m
mm
KBZ21.5
50
1.5
2
3.5
15
0.25
15
27
0.45
22
8.5
KBZ31.5
80
1.5
2
3.5
30
0.5
8
40
0.67
14.5
8.5
KBZ22.2
50
2.2
3
5
18
0.3
20
33
0.55
26
8.5
KBZ32.3
80
2.2
3
5
36
0.6
11
55
0.92
19
8.5
KBZ23.7
50
3.7
5
7.7
12
0.2
30
33
0.55
34
8.5
KBZ33.7
80
3.7
5
7.7
30
0.5
20
55
0.92
29
8.5
KBZ43.7
100
3.7
5
7.7
60
1
11.5
90
1.5
18.5
8.5
KBZ35.5
80
5.5
7.5
11.4
36
0.6
25
75
1.25
34
8.5
KBZ45.5
100
5.5
7.5
11.4
60
1
16
105
1.75
23
8.5
KBZ47.5
100
7.5
10
15
48
0.8
30
84
1.4
40
11.5
KBZ67.5
150
7.5
10
15
90
1.6
15
124.8
2.08
31
19.5
KBZ411
100
11
15
22
60
1
35
84
1.4
48.5
11.5
KBZ611
150
11
15
22
102
1.7
22
147
2.45
32
19.5
KBZ415
100
15
20
29.5
60
1
42
84
1.4
56
11.5
KBZ615
150
15
20
29.5
102
1.7
30
156
2.6
40
19.5
