SPA stainless steel pump
Category：
Summary:
Mainly used for well pumping,river pumping,flowing rain water collection,pumping water out from cellars,garages,basement.
Keywords:
pump deep water
- Details

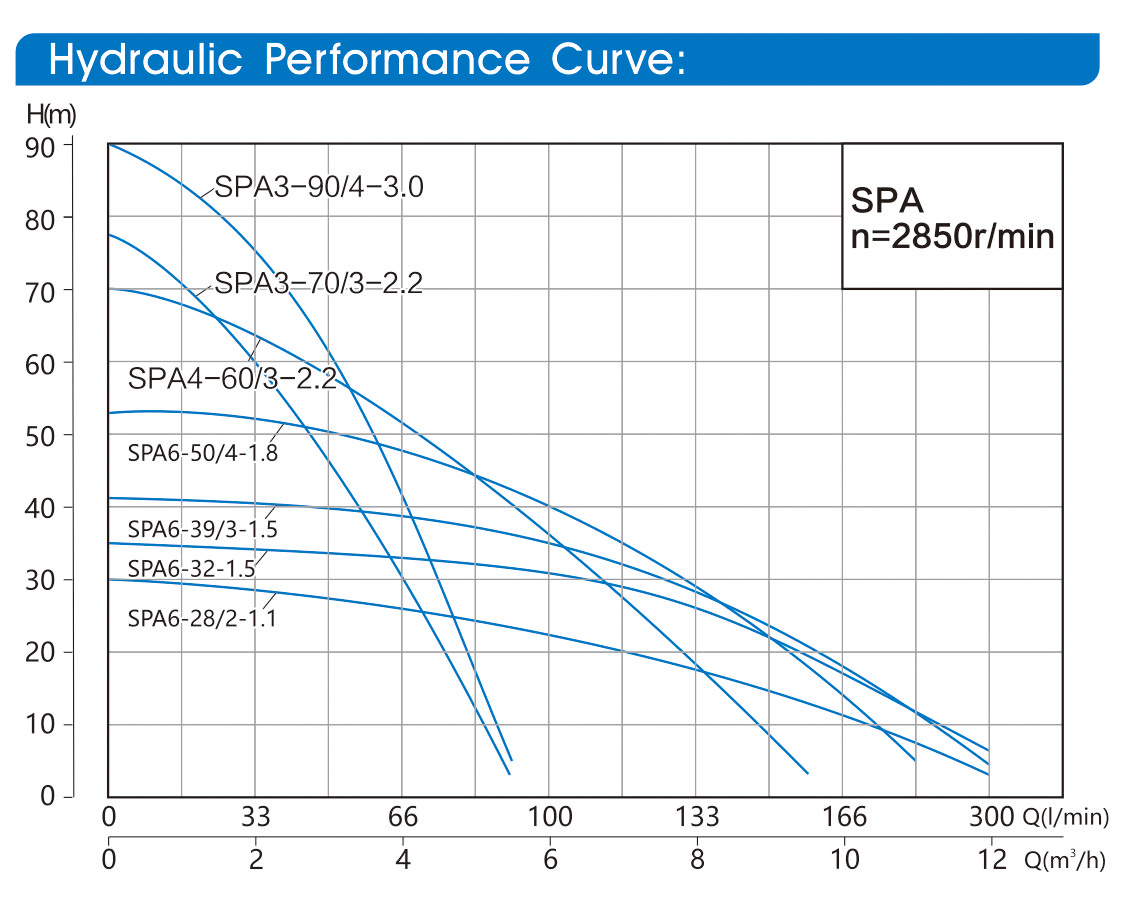

- Graph
- Technical
-
- Commodity name: SPA stainless steel pump

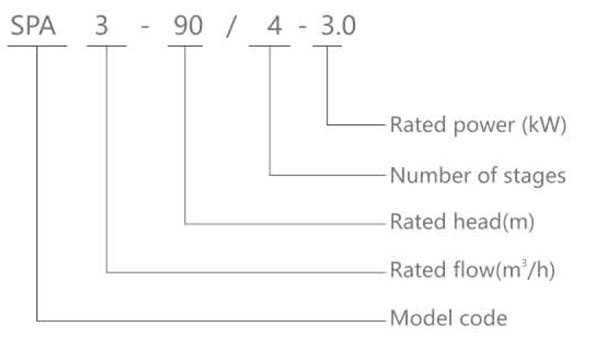

Model Implication
APPLICATION
• Characterized with high head, compact structure, light weight and convenient use.
• Vastly used in high position water delivery, flush and places as construction sites.
Material
* Pump body: Cast iron.
• Motor Bracket: SS.
• Impeller: Cast iron.
• Motor shaft: CS 45#.
• Mechanical seal: Silicon carbide + hot pressing Graphite
OPERATING CONDITIONS
• Submersible depth up to 5m.
• Liquid temperature up to +40°C
• PH value in the water is between 6.5-8.5
• Solids Passage up to 2mm
MOTOR AND PUMP
• 2 Pole induction motor.
• Single phase 220v, 50/60Hz -
-
Model
Power Outlet(mm)
Max. Flow (m3/h)
Max. Head(m)
DIM.(mm)
Weight(kg)
kW
HP
SPA6-28/2-1.1
1.1
1.5
50
12.5
30
535x275x225
23
SPA6-39/3-1.5
1.5
2
50
12.5
41
625x285x205
28.5
SPA6-32-1.5
1.5
2
40
13
34
560x275x225
26
SPA6-50/4-1.8
1.8
2.5
50
11.5
52
680x295x215
31.5
SPA3-70/3-2.2
2.2
3
40
6
78
590x350x250
36
SPA4-60/4-2.2
2.2
3
50
10
70
650x285x200
32
SPA3-90/4-3.0
3.0
4
40
6
90
680x350x250
42
