CDLFT Light-type stainless steel multistage pump

Category：

Multistage pump

Summary:

Mainly used for well pumping,river pumping,flowing rain water collection,pumping water out from cellars,garages,basement.

Keywords:

pump deep water

Get an inquiry

Back to list

Details
Graph
Technical

- Commodity name: CDLFT Light-type stainless steel multistage pump

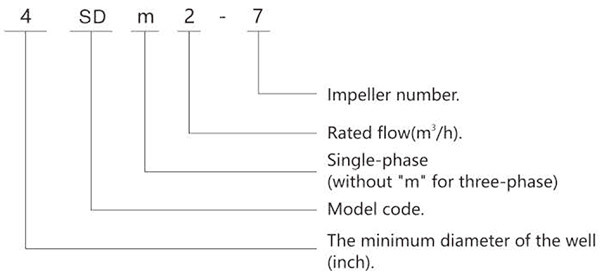

Model Instruction

PRODUCT INTRODUCTION
• Light-type stainless steel multistage centrifugal pumps are non-self priming pumps absorbing the advanced technology from home and abroad. Adopting standard motor and alloy mechanical seal, which make the replacement more convenient. The overflowing part is made from stainless steel, applicable for light-corrosion medium. Relying on the high efficiency, energy saving performance, reliable quality and wide usable range, the products a received the great popularity after they have been launched.

FEATURE
• The premium hydraulic model and advanced workmanship greatly improve the pumps* performance and exend the service life.
• Adopting alloy and fluorin rubber for the mechanical seal, which ensures the pumps' reliable operation and endures high temperature of transmission Medium.
• As the overflowing part of pump is stamped and welded by stainless steel plate, which is suitable for slightly aggressive liquids.
• Compact design, small in size, light weight, low noise, excellent energy saving performance, easy to maintenance.
• Inlet and outlet of the pump stand in the same line with the pump base, which can be used directly in the pipelines.
• Clients can allocate the motor based on their own needs.
• We provide the intelligent protector to avoid dry running, default phase and over loading of the pump to meet customers' demand.

WORKING CONDITION
• Liquid temperature range : Normal type 0℃ ~ +68℃, hot water type 0°C~+120°C.
• Ambient temperature range : -15°C~+40°C
• The maximum inlet pressure: 1.0 Mpa/10 Bar
• When the density or viscosity of the transmission medium exceeds that of water, it is necessary to choose a driving motor of high-power.
