WQAS Sewage submersible pump
Category：
Summary:
Mainly used for well pumping,river pumping,flowing rain water collection,pumping water out from cellars,garages,basement.
Keywords:
pump deep water
- Details

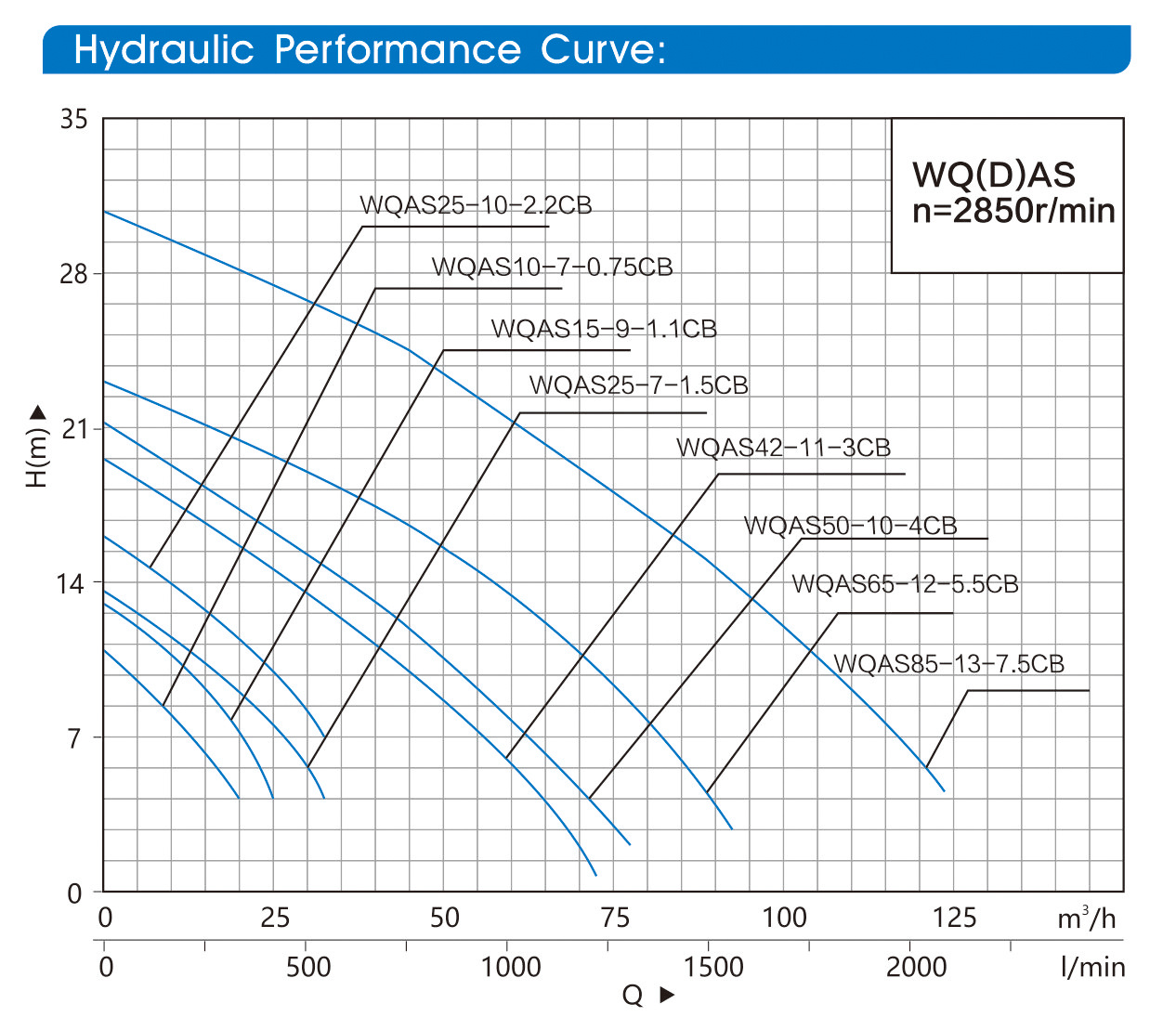

- Graph
- Technical
-
- Commodity name: WQAS Sewage submersible pump
OPERATING CONDITIONS
• Submersible depth 5 m.
• Liquid temperature up to +40℃.
• Ambient temperature up to +40℃.
• Max. Working pressure: 6 bar.
• Passage of suspended solid up to 35 mm.MOTOR
• 2 pole induction motor.
• Single phase 220v, 50/60Hz: Three phase 380v,50/60 Hz:
• Insulation: Class E.
• Protection: IP X8.
• Single-phase with capacitor.
• With thermal overload protection.
Material
• Pump body: Cast Iron.
• Motor bracket: Cast Iron.
• Impeller: Cast Iron.
• Motor shaft: SS420 or CS45#.
• Mechanical seal: Ceramic-Graphite + Silicon Carbide-Carbide alloy. -
-
Model
Power
Rate
current
(A)Solids
Passage
(mm)Max.
Flow
(m3/h)Max.
Head
(m)Cable line
(m)Dim.(mm)
(LxWxH)
G.W.
(kg)20'Loading
Qty.(pcs)Single-Phase
Three-Phase
L
H
— WQAS10-7-0.75CB
0.75
1
2
20
20
11
4x1-10
530x220x275
33
880
—
WQAS15-9-1.1CB
1.1
1.5
2.7
20
25
13
4x1-10
560x220x275
35
832
—
WQAS25-7-1.5CB
1.5
2.2
3.6
25
33
14
4x1.5-10
610x260x325
44
567
— WQAS25-10-2.2CB
2.2
3
5.1
25
33
16
4x1.5-10
610x260x325
50
567
—
WQAS42-11-3CB
3
4
6.7
30
73
20
4x1.5☆-10
710x335x385
73
336
—
WQAS50-10-4CB
4
5.5
8.8
30
77
21
4x1.5☆-10
710x335x385
80
336
—
WQAS65-12-5.5CB
5.5
7.5
11.7
30
99
23
4x2.5-10
770x355x440
116
240
—
WQAS85-13-7.5CB
7.5
0
15.7
35
123
31
4x2.5-10
800x355x440
125
210
WQDASW-7-0.75CB
—
0.75
1
5.2
20
20
11
4x1-9
630x220x290
37
720
WQDAS15-9-1.1CB
—
1.1
1.5
7.3
20
25
13
4x1-9
630x220x290
41
720
WQDAS25-7-1.5CB
—
1.5
2.2
9.5
25
33
14
4x1.5-9
610x260x325
47
567
WQDAS25-10-2.2CB
—
2.2
3
13.8
25
33
16
4x1.5☆-9
660x260x355
55
432
—
WQAS10-7-0.75CB(415V/50Hz)
0.75
1
1.8
20
20
11
4x1-10
530x220x275
33
880
—
WQAS15-9-1.1CB(415V/50Hz)
1.1
1.5
2.5
20
25
13
4x1-10
560x220x275
35
832
—
WQAS25-7-1.5CB(415V/50Hz)
1.5
2.2
3.3
25
33
14
4x1.5-10
610x260x325
44
567
—
WQAS25-10-2.2CB(415V/50Hz)
2.2
3
4.7
25
33
16
4x1.5-10
610x260x325
50
567
— WQAS42-11-3CB(415V/50Hz)
3
4
6.1
30
73
20
4x1.5☆-9
710x335x385
73
336
—
WQAS50-10-4CB(415V/50Hz)
4
5.5
8.1
30
77
21
4x1.5☆-9
710x335x385
80
336
—
WQAS65-12-5.5CB(415V/50Hz)
5.5
7.5
10.7
30
99
23
4x2.5-10
770x355x440
116
240
—
WQAS85-13-7.5CB(415V/50Hz)
7.5
10
14.4
35
123
31
4x2.5-10
800x355x440
135
210
Centrifugal pumps are not recommended to be used out of the lift range
