SDM Deep well pump
Category：
Summary:
Mainly used for well pumping,river pumping,flowing rain water collection,pumping water out from cellars,garages,basement.
Keywords:
pump deep water
- Details
- Graph

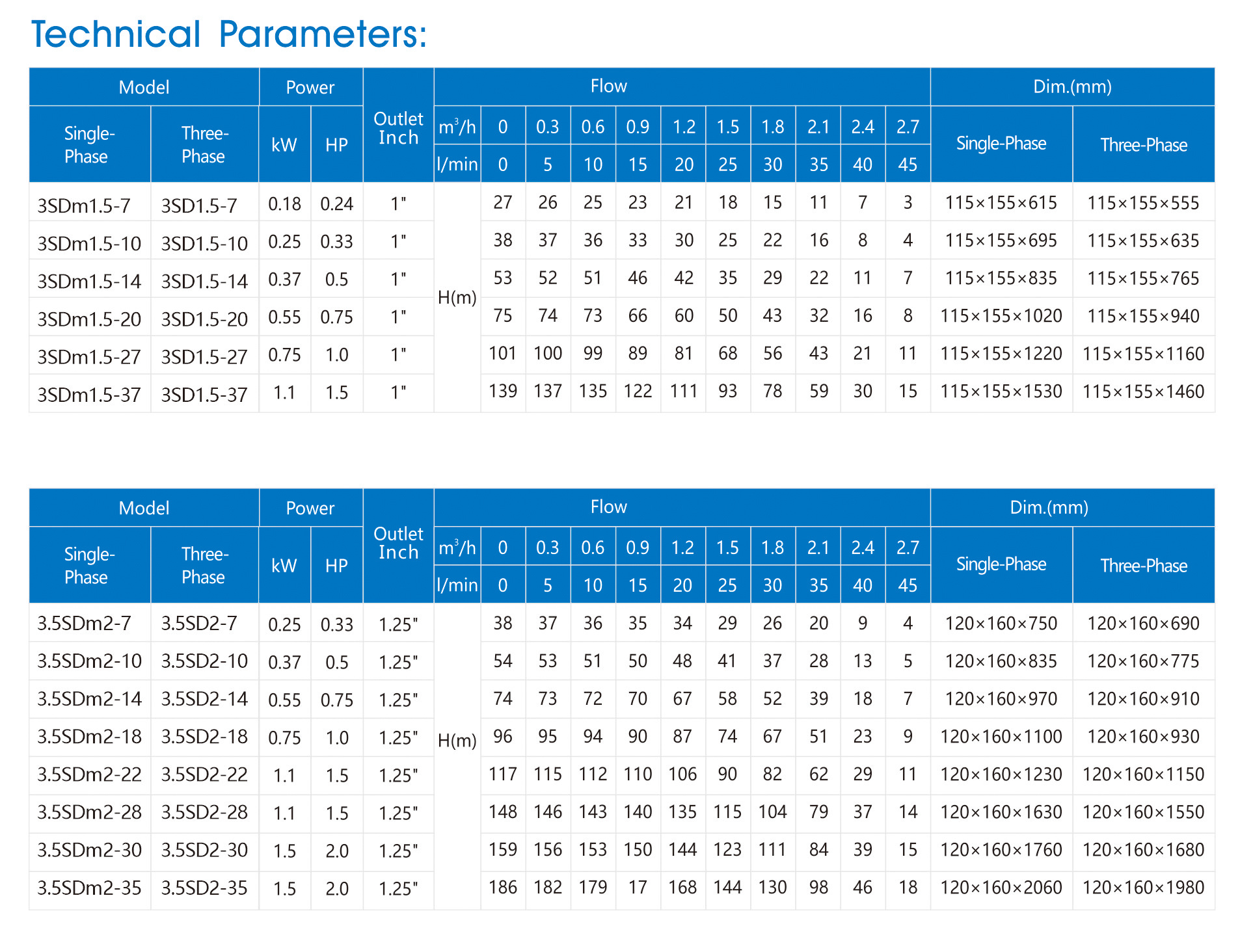

- Technical
-
- Commodity name: SDM Deep well pump

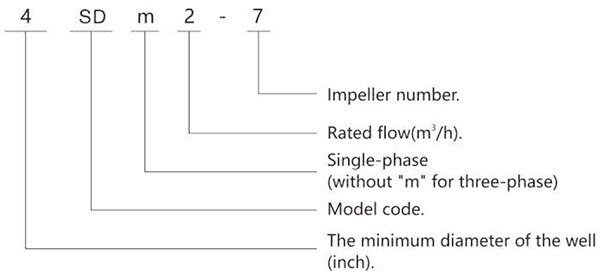

Model implicotion
Material
•Pump external casing AISI 304 SS
•Delivery casing Cast-Cu ASTM280 2 AISI 304 SS
•Suction lantern Case-Cu ASTM280 2 AISI 304 SS
•Diffuser Plastic.PC
•Impeller Plastic.POM.
•Shaft AISI 316 SS 2 AISI 304 SS
• Shaft coupling AISI 316 SS 2 AISI 304 SS
•Wear ring AISI 304 SS
•Motor external casing AISI 304 SS
•Top chock Cast-Cu ASTM280 2 Cast-Iron G20 UNI5007
•Bottom support AISI 304 SS
•Mechanical seal Special seal for deep well ( carbon-SIC/TC)
•Shaft AISI 304 SS-C1045
•Bearing NSK
•Seal lubricant oil Oil for food machinery and pharmaceutical use
APPLICATION
• For well pumping, river pumping, farm irrigation, water supply,mining, drainage in breeding industry.
MOTOR
• 2 pole induction motor.
• Single phase 220v, 50/60Hz : Three phase 380v,50/60 Hz;
• Submersible motor in oil bath.
• Insulation: Class B.
• Protection: IP X8.
• Outlet diameter: 1.25*/1.5*/2*.
OPERATING CONDITIONS
• Submersible depth: 70m
• Liquid temperature up to +40℃.
• Ambient temperature up to +40°C.
• Max. sand content: 150g/m
• Min. well diameter: 3*/3.5*/4*.
-
-
