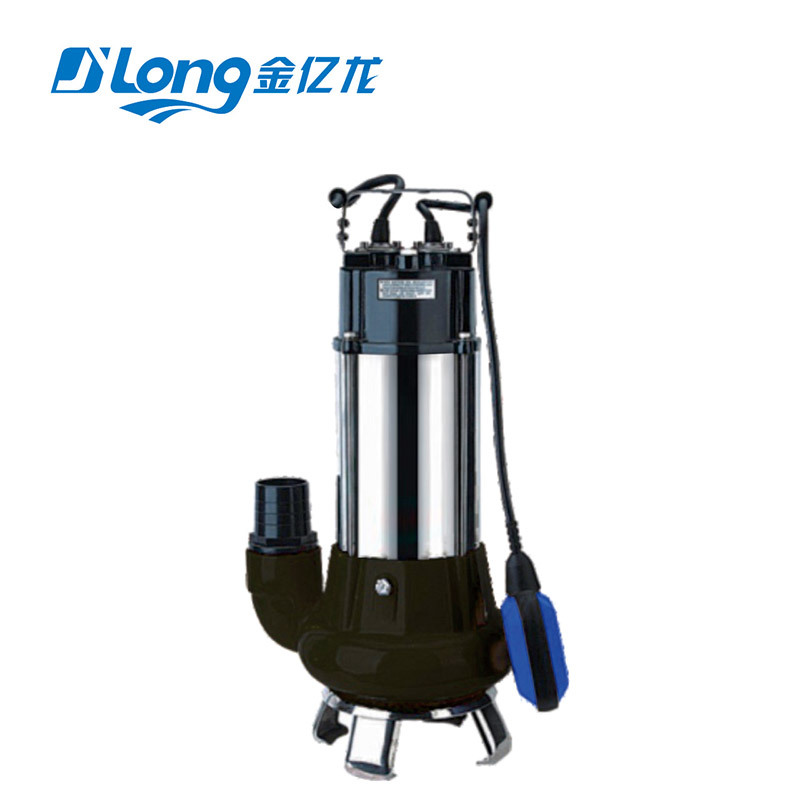

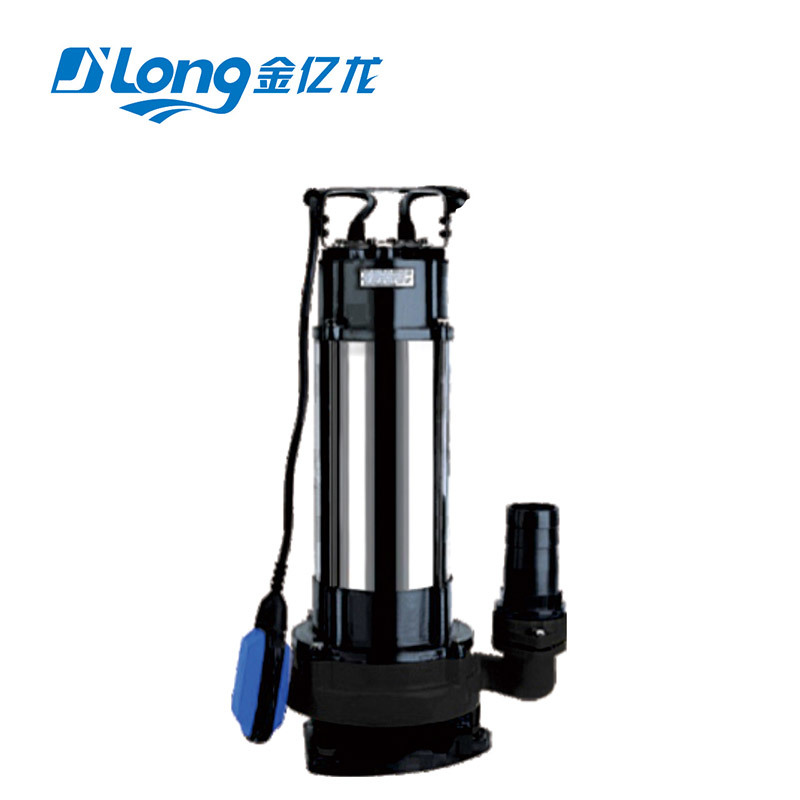

V Stainless steel sewage submersible pump
Category：
Summary:
Mainly used for well pumping,river pumping,flowing rain water collection,pumping water out from cellars,garages,basement.
Keywords:
pump deep water
- Details
- Graph
- Technical
-
- Commodity name: V Stainless steel sewage submersible pump
Model implicotion
APPLICATIO
• Domestic / Commercial / Industrial use.
• Drainage of sewage from the building basements, hotel.
• Industry waste water from factories.
• Pumping surface and draining water from the garages and sprinkler systems.
• Being equipped with a double-channel impeller.
• The big flow, medium-low head.
MOTOR
• 2 pole induction motor.
• Single phase 220v, 50/60Hz : Three phase 380v,50/60 Hz;
• Insulation:Class E.
• Protection:IPX8.
• Single-phase with capacitor.With thermal overload protection.
Material
• Pump body: Cast iron.
• Motor Bracket: SS.
• Impeller: Cast iron.
• Motor shaft: CS 45#.
• Mechanical seal: Silicon carbide + hot pressing Graphite.
OPERATING CONDITIONS
• Submersible depth up to 5 m.
• Liquid temperature up to +40°C.
• Ambient temperature up to +40°C.
• Max. Working pressure:6 bar.
• Solids Passage up to 35 mm. -
Model
Power
Outlet (mm)
Rated Flow (l/min)
Max.Head
(m)
DIM.(mm)
Weight (kg)
kW
HP
V1100F
1.1
1.5
50
360
11
280x200x560
22.5
V1500F3"
1.5
2
80
600
14
280x220x600
26
V1500R
1.5
2
50
340
23
280x200x560
26.5
V 2200F 3"
2.2
3
80
600
15
550x310x200
33
V 2200F 4"
2.2
3
102
800
18
570x340x220
35
