V Stainless steel sewage submersible pump
Category：
Summary:
Mainly used for well pumping,river pumping,flowing rain water collection,pumping water out from cellars,garages,basement.
Keywords:
pump deep water
- Details
- Graph
- Technical
-

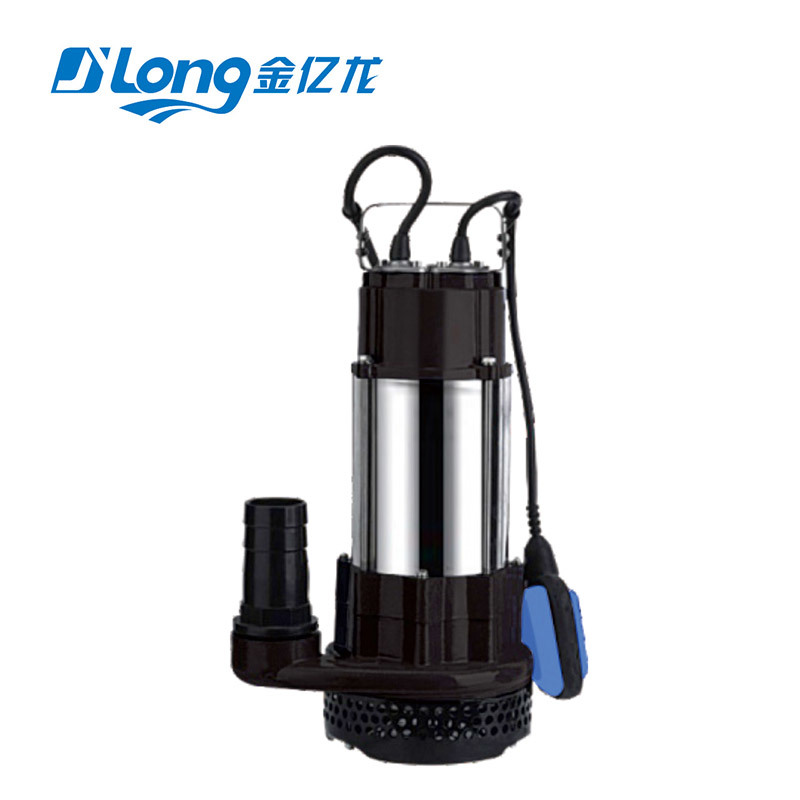

- Commodity name: V Stainless steel sewage submersible pump

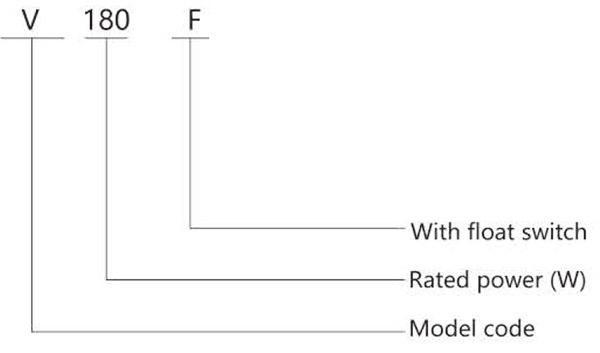

Model implicotion
APPLICATIO
• Domestic / Commercial / Industrial use.
• Drainage of sewage from the building basements, hotel.
• Industry waste water from factories.
• Pumping surface and draining water from the garages and sprinkler systems.
• Being equipped with a double-channel impeller.
• The big flow, medium-low head.
MOTOR
• 2 pole induction motor.
• Single phase 220v, 50/60Hz : Three phase 380v,50/60 Hz;
• Insulation:Class E.
• Protection:IPX8.
• Single-phase with capacitor.With thermal overload protection.
Material
• Pump body: Cast iron.
• Motor Bracket: SS.
• Impeller: Cast iron.
• Motor shaft: CS 45#.
• Mechanical seal: Silicon carbide + hot pressing Graphite.
OPERATING CONDITIONS
• Submersible depth up to 5 m.
• Liquid temperature up to +40°C.
• Ambient temperature up to +40°C.
• Max. Working pressure:6 bar.
• Solids Passage up to 35 mm. -
Model
Power
Outlet (mm)
Max.Flow (l/min)
Max.Head(m)
DIM.(mm)
Weight (kg)
kW
HP
V750F 2"
0.75
1
50
300
10
260X200X530
20.5
V 750F 3"
0.75
1
75
500
9
260X200X530
21
V750R3"
0.75
1
75
600
8
260X200X530
22
V750R2"
0.75
1
50
150
24
260X200X530
16.8
