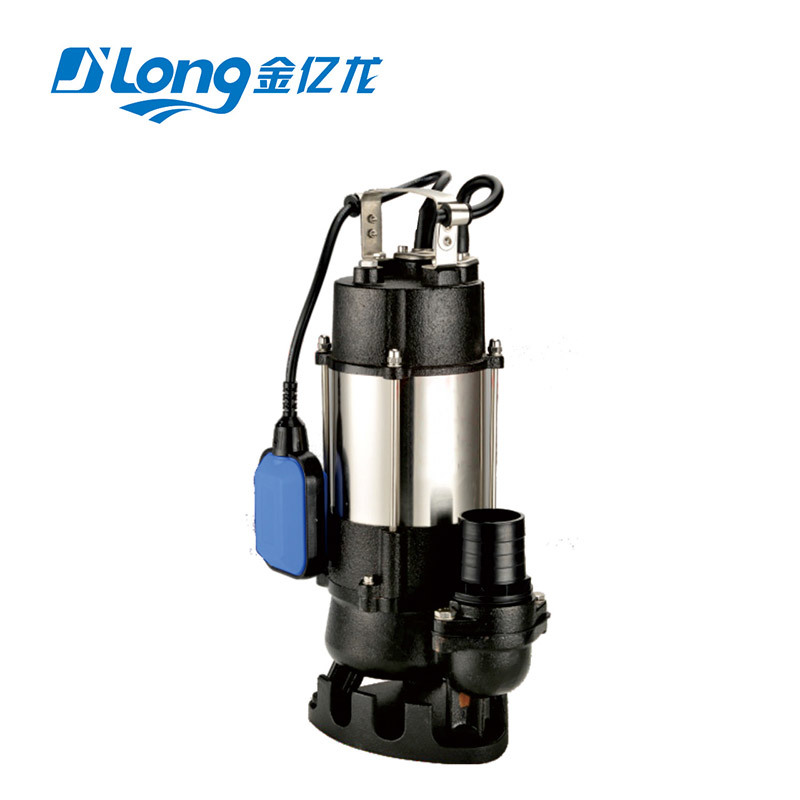

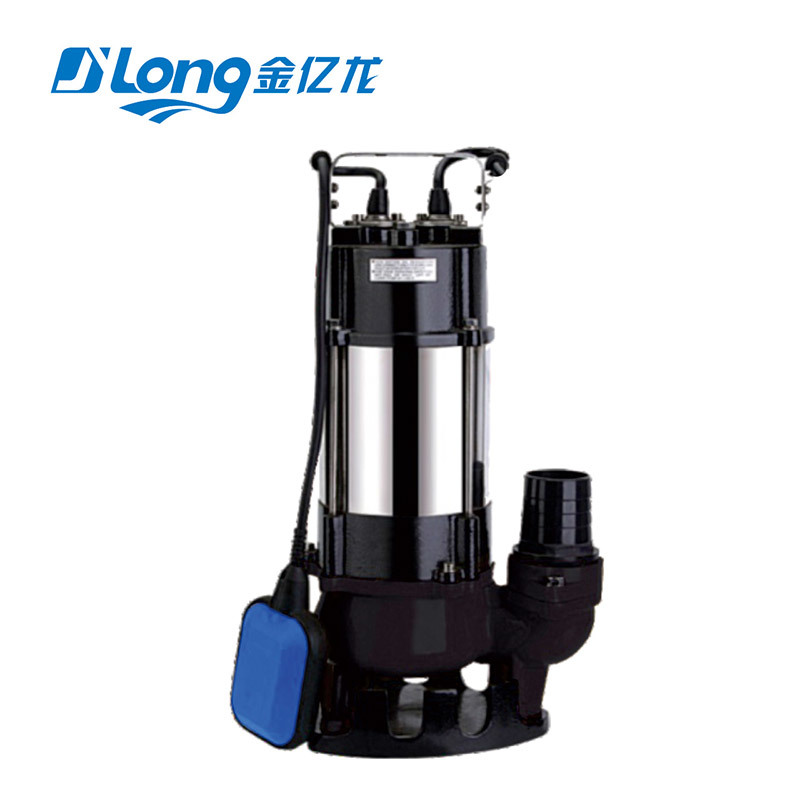

V Stainless steel sewage submersible pump
Category：
Summary:
Mainly used for well pumping,river pumping,flowing rain water collection,pumping water out from cellars,garages,basement.
Keywords:
pump deep water
- Details
- Graph
- Technical
-
- Commodity name: V Stainless steel sewage submersible pump
Model implicotion
APPLICATIO
• Domestic / Commercial / Industrial use.
• Drainage of sewage from the building basements, hotel.
• Industry waste water from factories.
• Pumping surface and draining water from the garages and sprinkler systems.
• Being equipped with a double-channel impeller.
• The big flow, medium-low head.
MOTOR
• 2 pole induction motor.
• Single phase 220v, 50/60Hz : Three phase 380v,50/60 Hz;
• Insulation:Class E.
• Protection:IPX8.
• Single-phase with capacitor.With thermal overload protection.
Material
• Pump body: Cast iron.
• Motor Bracket: SS.
• Impeller: Cast iron.
• Motor shaft: CS 45#.
• Mechanical seal: Silicon carbide + hot pressing Graphite.
OPERATING CONDITIONS
• Submersible depth up to 5 m.
• Liquid temperature up to +40°C.
• Ambient temperature up to +40°C.
• Max. Working pressure:6 bar.
• Solids Passage up to 35 mm. -
Model
Power
Outlet (mm)
Rated Flow (l/min)
Max.Head
(m)
DIM.(mm)
Weight (kg)
kW
HP
V180F
0.18
0.25
40/32/25
133
7
190x180x400
8.5
V250F
0.25
037
40/32/25
130
7
190x180x400
9.5
V370F
0.37
0.5
40/32/25
150
8.5
185x180x405
6
V450F
0.45
0.6
50
200
8.5
260x200x490
17.5
V550F
0.55
0.75
50
270
8.5
260x200x490
18.5
