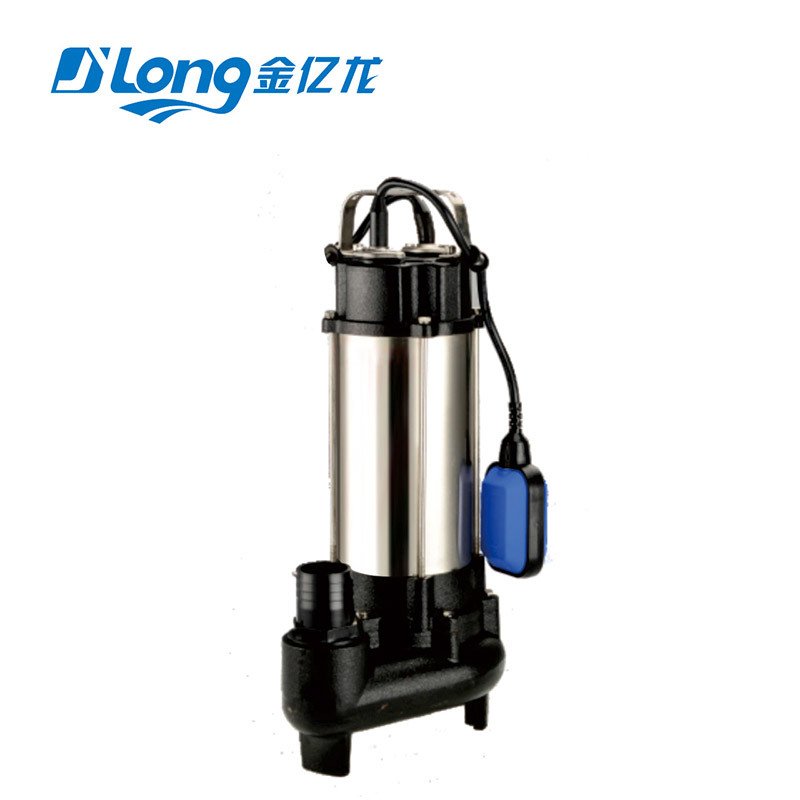

V Stainless steel sewage submersible pump
Category：
Summary:
Mainly used for well pumping,river pumping,flowing rain water collection,pumping water out from cellars,garages,basement.
Keywords:
pump deep water
- Details

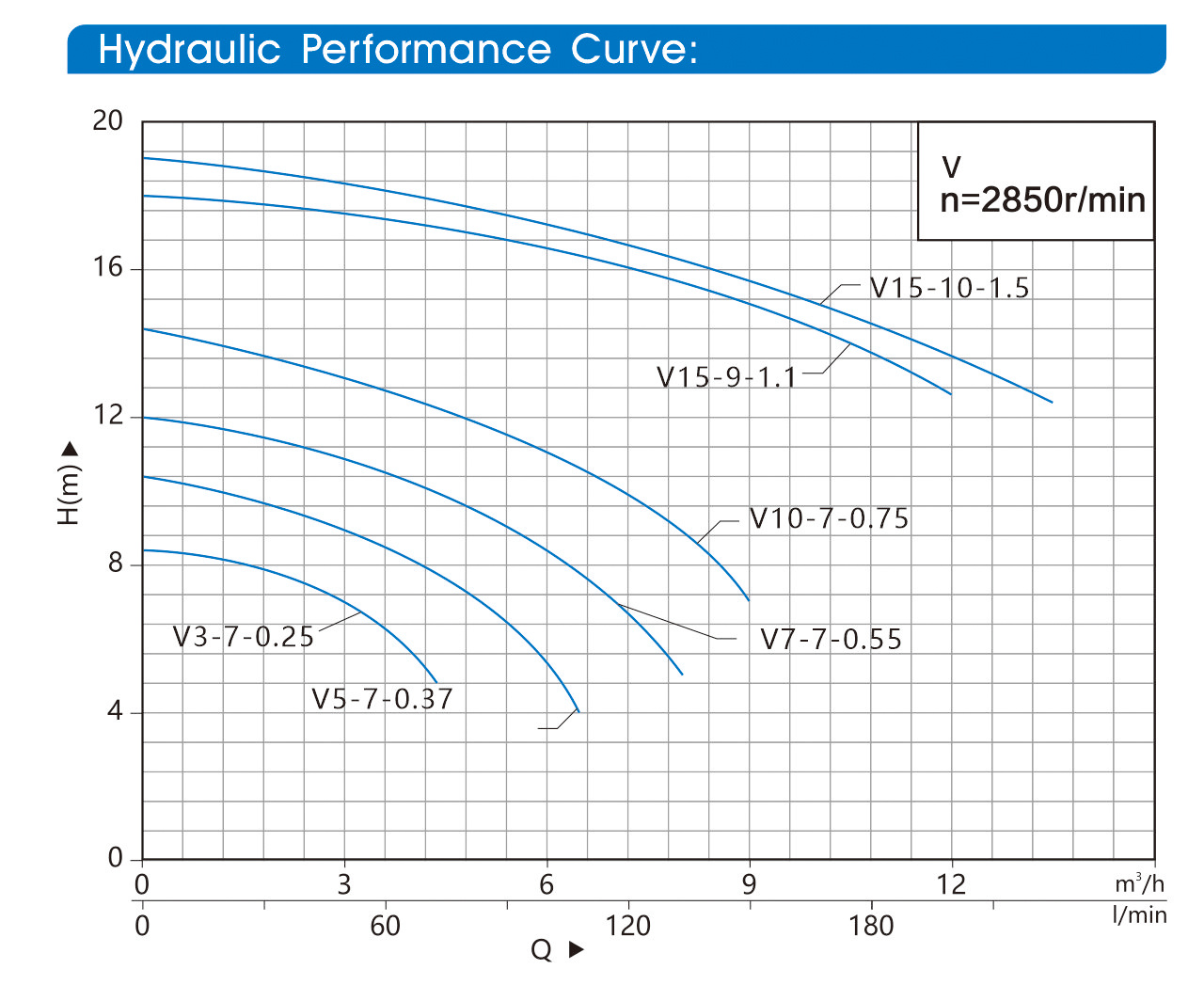

- Graph
- Technical
-
- Commodity name: V Stainless steel sewage submersible pump
MOTOR
• 2 pole induction motor.
• Single phase 220v, 50/60Hz : Three phase 380v,50/60 Hz;
• Insulation: Class E.
• Protection: IP X8.
• With capacitor and thermal overload protection.
Material
• Pump body: Cast iron
• Motor bracket: Stainless steel.
• Impeller: Cast Iron.
• Motor shaft: SS 420 or CS 45#.
• Mechanical seal: Ceramic-Graphite + Silicon Carbide-Carbide alloy.
APPLICATION
• Domestic / Commercial / Industrial use.
• Drainage of sewage from the building basements, hotel.
• Industry waste water from factories.
• Pumping surface and draining water from the garages and sprinkler systems.
OPERATING CONDITIONS
• Submersible depth up to 5 m.
• Liquid temperature up to +40°C.
• Ambient temperature up to +40°C.
• Max. Working pressure: 6 bar.
• Solids Passage up to 50 mm. -
-
Model
Power
Outlet (Inch)
Rated Flow (m3/h)
Rated Head (m)
DIM.(mm)
Weight (kg)
kW
HP
V3-7-0.25
0.25
0.34
1.2"
3
7
190x140x380
8.5
V5-7-037
037
0.5
1.2"
5
7
190x140x380
9.5
V7-7-0.55
0.55
0.75
2"
7
7
450x230x255
10
V10-7-0.75
0.75
1
2"
10
7
465x255x195
18
V15-9-1.1
1.1
1.5
2"
15
9
505x285x205
21
V15 10 1.5
1.5
2
2"
5
10
522X585X210
22
