QD submesible pump
Category：
Summary:
Mainly used for well pumping,river pumping,flowing rain water collection,pumping water out from cellars,garages,basement.
Keywords:
pump deep water
- Details
- Graph
- Technical
-
- Commodity name: QD submesible pump
OPERATING LIMITS
OPERATING LIMITS
Max. medium temperature +40°C
Max. ambient temperature +40°C
PH level from 6.5-8.5
Maximum sand content is 0.1%. Passage
of suspended solids up to 0.2mm.
Voltage fluctuation range: 0.9-1.1 times of
the rated value
Immersion depth from 0.5m-5m
MATERIAL
Pump body: Cast iron
Motor housing: Aluminum/Irom
Impeller: Aluminum
Motor wire: Copper
Mechanical seal: Ceramic&Graphite
Shaft: 45#steel/stainless steel
MOTOR INFORMATION
Two-pole induction motor
Single phase/three phase, 50/60Hz (on demand)
Thermal protector for single phase
Insulation class: B
Protection class: IPX8 -
-

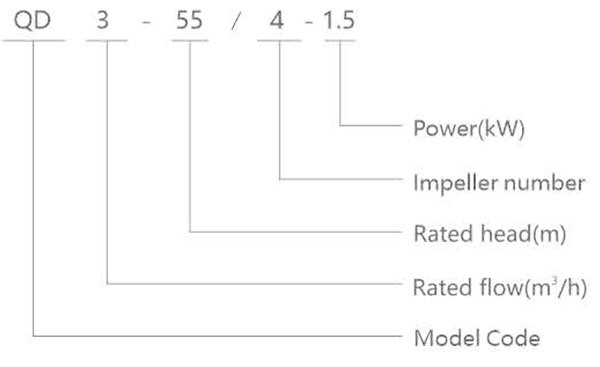

Model
Power (KW)
Volt(V)
Rate flow(m3/h)
Max. Flow (m3/h)
Rate head(m)
Head range
Speed (r/min)
Rate Current(A)
Outlet Dia(Inch)
Dimension(mm)
QD2-30/2-0.75
0.75
220
2
3
30
8 32
2850
3.4/1.5
1
450x180
QD2-40/3-1.1
1.1
220
2
3
40
10-42
2850
5/2
1
450x180
QD6-22/2-0.75
0.75
220
6
9.5
22
10 24
2850
5.3/2
1.5
475x180
QD3-30/2-0.75
0.75
220
3
7.5
30
18-33
2850
5.3/2
1
525x180
QD3-45/3-1.1
1.1
220
3
7.5
45
28-48
2850
7.1/2.8
1
570x180
QD6-32/3-1.1
1.1
220
6
9.5
32
20-34
2850
7.1/2.8
1.5
520x180
QD3-55/4-1.5
1.5
220
3
7.5
55
38-58
2850
9.5/3/6
1
640x180
QD6 43/4 1.5
1.5
220
6
9.5
43
20 45
2850
9.5/3/6
1.5
600x180
QD10-26/2-1.5
1.5
220
10
20
26
15-28
2850
9.5/3/6
2
555x195
QD10-30/3-1.5
1.5
220
10
20
30
20 36
2850
9.5/3/6
2
590x195
QD15-20/2-1.5
1.5
220
15
22
20
10-29
2850
9.5/3/6
2.5
555x195
QD10-40/3-2.2
2.2
220
10
22
40
25-44
2850
13.8/5.2
2
625x195
QD15-28/3-2.2
2.2
220
15
22
28
18-40
2850
13.8/5.2
2.5
625x195
