WZ Automatic boosting pump
Category：
Summary:
Mainly used for well pumping,river pumping,flowing rain water collection,pumping water out from cellars,garages,basement.
Keywords:
pump deep water
- Details

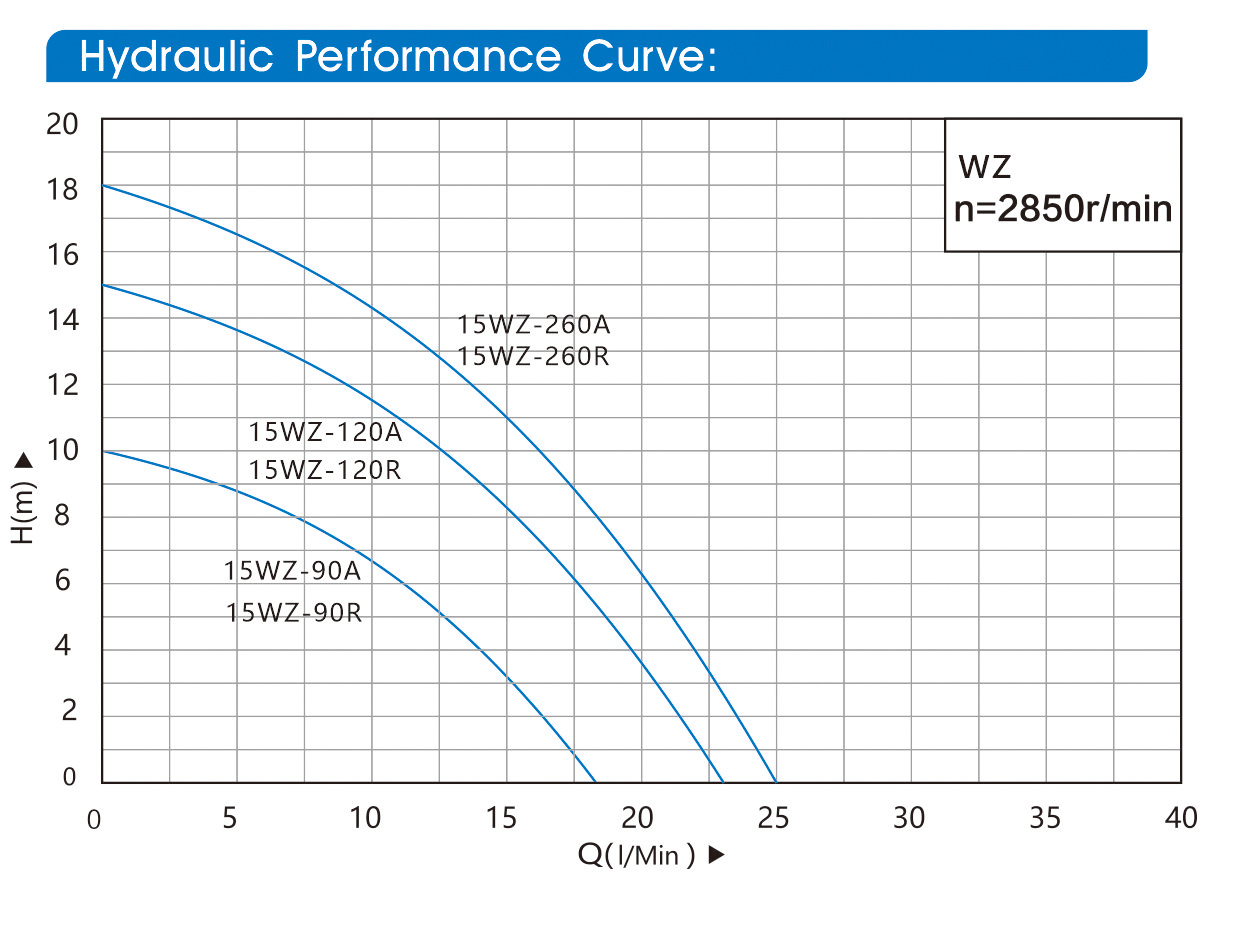

- Graph
- Technical
-
- Commodity name: WZ Automatic boosting pump
OPERATING CONDITIONS
• Easily fitted and removed.
• Excellent self suction capability.
• Pump controlled automatically by built-in pressure switch.
• Permissible liquid temperature up to + 60°C.
• Low noise, excellent corrosion resistance, high pressure.
OPERATING CONDITIONS
• Easily fitted and removed.
• Excellent self suction capability.
• Pump controlled automatically by built-in pressure switch.
• Permissible liquid temperature up to + 60°C.
• Low noise, excellent corrosion resistance, high pressure.
APPLICATION
• Maximum fluid temperature up to +60°C.
• Pressure water supply for shower.
• Tap water booster.
• Obtain water from pool.
• Water circulating for equipment.
MOTOR
• Single phase 220v, 50/60Hz
• Insulation:Class F.
• Protection: IP44,
• Wide voltage range design, single-phase and three-phase.
Material
• Pump body :brass
• Motor shaft :CS45#.
• Impeller :brass.
• Motor housing :stainless steel.
• Mechanical seal : graphite -
-
Model
Power(W)
Pump size (Inch)
Coupling size (Inch)
Max. Flow (l/min)
Max. Head(m)
15WZ-90A
90
3/4"
3/4"to1/2"
18
10
15WZ-120A
120
3/4"
3/4"to1/2" 23
15
15WZ-260A
260
3/4"
3/4"to1/2" 25
18
15WZ-90R
90
3/4"
3/4"to1/2" 18
10
15WZ-120R
120
3/4"
3/4"to1/2" 23
15
15WZ 260R
260
3/4"
3/4"to1/2" 25
18
