JYL Multistage pump
Category：
Summary:
Mainly used for well pumping,river pumping,flowing rain water collection,pumping water out from cellars,garages,basement.
Keywords:
pump deep water
- Details

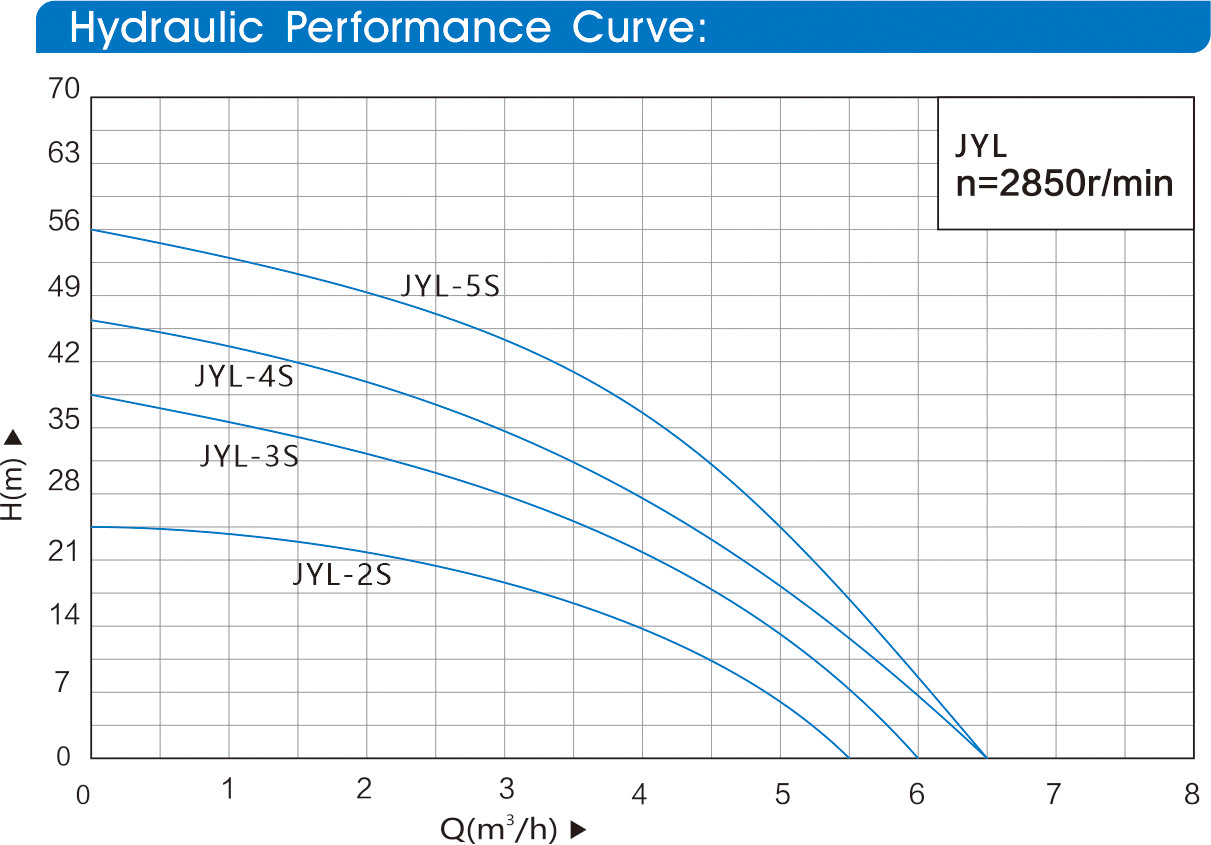

- Graph
- Technical
-
- Commodity name: JYL Multistage pump

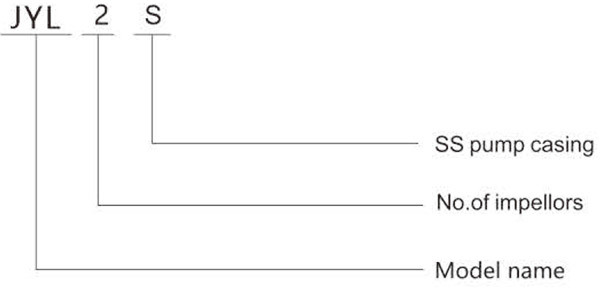

Model Impiicetion
OPERATING CONDITIONS
• Liquid temperature up to +60°C.
• Ambient temperature up to +40°C.
• Suction lift up to 9 m.
• Continuous Duty.
Material
• Pump Body:Cast Iron
• Moto Housing:Aluminum
• Impeller:PPO
• Motor Winding:Copper
• Motor Shaft:Stainless steel/Carbon steel
• Mechanical Seal:Ceramic-graphite
APPLICATION
• For domestic and industrial applications, irrigation and hydropneumatic sets.
• Quite running multistage centrifugal pump.Built-in self priming valve, not very sensitive to the impurities.
MOTOR
• 2 pole induction motor.
• Single phase 220v, 50/60Hz
• Insulation:Class B/Class F.
• With capacitor and thermal overload protection. -
-
Model
Single-Phase
Power
Inlet
Outlet
Max.Flow
(m7h)
Max.Head
(m)
Max.Suction
(m)
DIM.(mm)
Weight (kg)
Kw HP JYL-2S
0.37
0.5 1"
1" 5.4 25
8
415x200x208
11
JYL-3S
0.55
0.75 1"
1" 6 35
8
435x200x208 13
JYL-4S
0.75
1 1"
1" 6.6 45
8
460x200x208 14
JYL-5S
1.1
1.5 1"
1" 6.6 55
8
480x200x208 15.5
