2HCP Centrifugal pump
Category：
Summary:
Mainly used for well pumping,river pumping,flowing rain water collection,pumping water out from cellars,garages,basement.
Keywords:
pump deep water
- Details

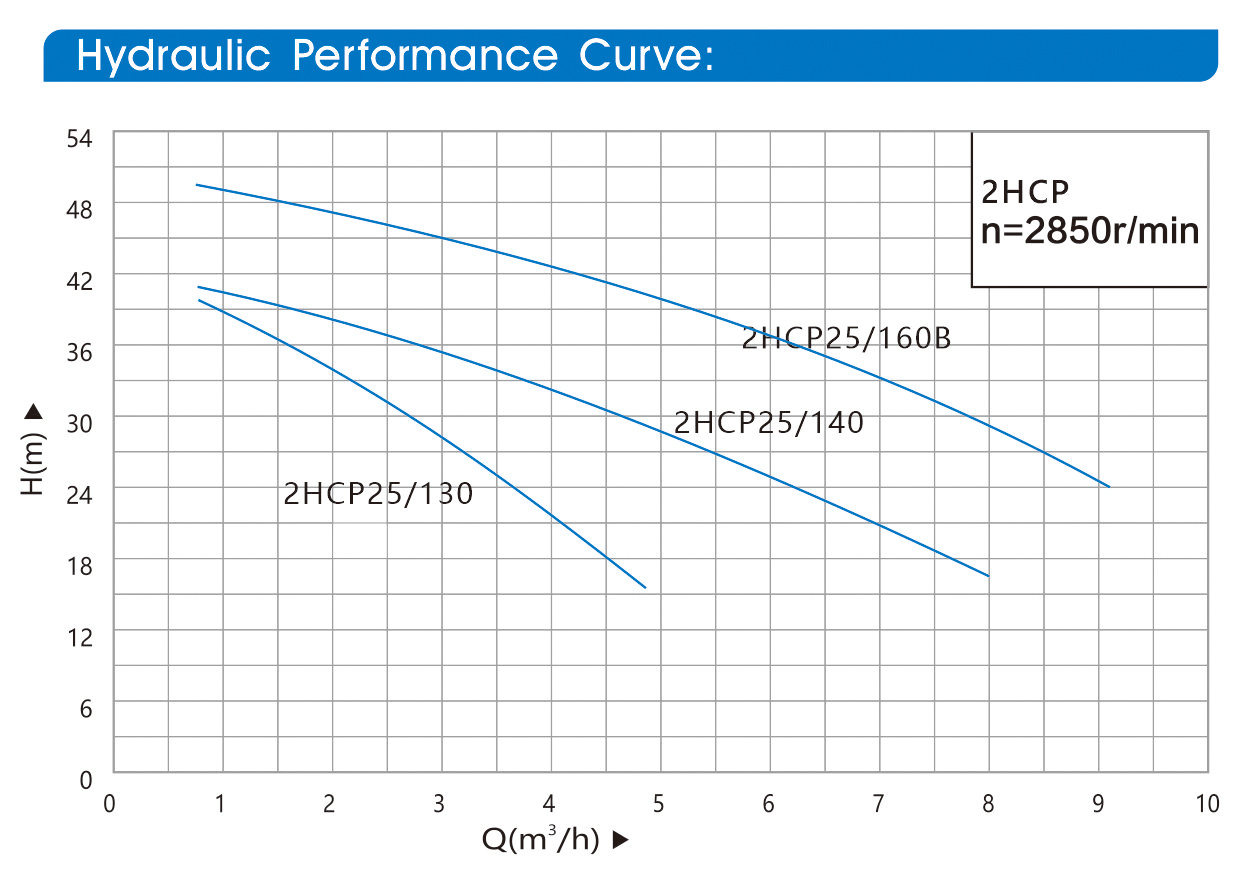

- Graph
- Technical
-
- Commodity name: 2HCP Centrifugal pump
APPLICATION
• Clean water without abrasive particles, non-aggressive liquid.
• Domestic use, agricultural and irrigation.
• Installed in enclosed places, or at least protected against inclement weather.
MOTOR
• 2-pole induction motor: 50Hz.
• Insulation: Class B/Class F.
• Single-phase with capacitor and thermal overload protection.
OPERATING CONDITIONS
• Suction lift up to 8 m.
• Max working pressure bar.
• Liquid temperature up to +60°C
• Ambient temperature up to +40°C
Material
• Pump body: Cast iron.
• Motor bracket : Aluminum
• Impeller: SS304 or Brass.
• Motor shaft : SS304 and CS45#.
• Mechanical seal : silicon carbide-Graphite.
• 100% Copper Winding. -
-
Model
Power
Inlet
Outlet
Max Flow (m3/h)
Max. Head(m)
Max Suction(m)
DIM.(mm)
Weight (kg)
Single-Phase
Three-Phase
kW
HP
2HCP25/130
2HCP25/130
0.75
1
1.25"
1"
5.1
42
8
385x235x280
17
2HCP25/140
2HCP25/140
1.1
1.5
1.5"
1" 8.4
42
8
445x225x200
24
2HCP25/160B
2HCP25/160B
1.5
2
1.5" 1" 9.6
50
8
445x255x300
26
