SHFM Centrifugal pump
Category：
Summary:
Mainly used for well pumping,river pumping,flowing rain water collection,pumping water out from cellars,garages,basement.
Keywords:
pump deep water
- Details

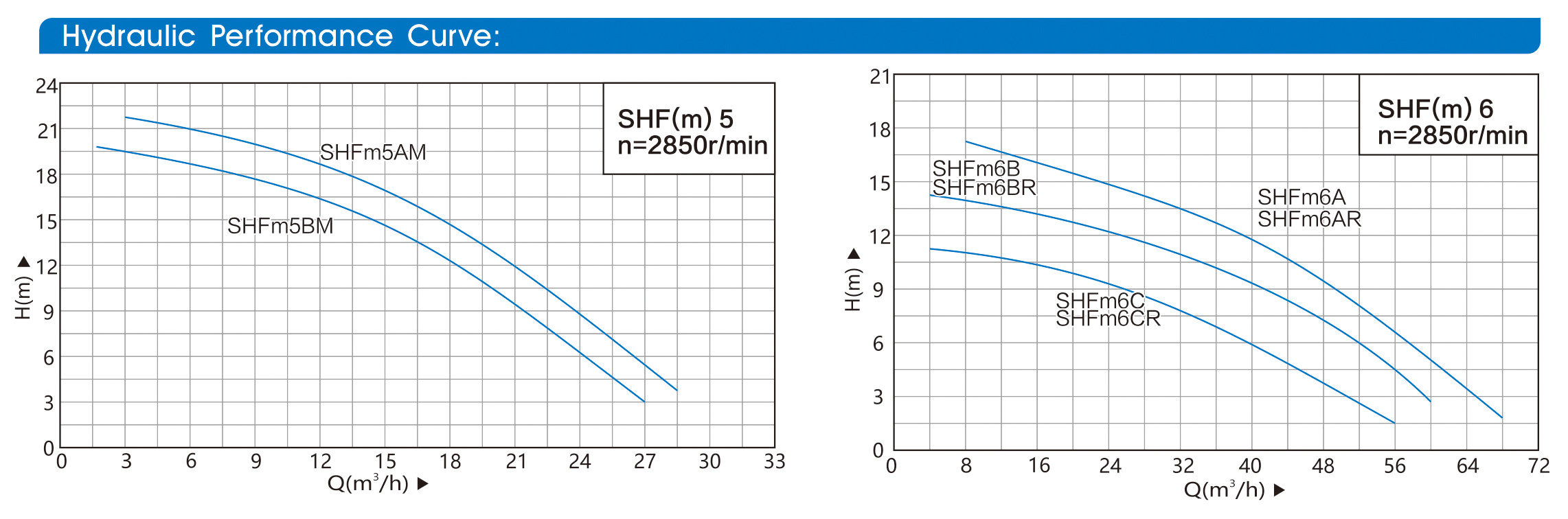

- Graph
- Technical
-
- Commodity name: SHFM Centrifugal pump
APPLICATION
• Clean water with little impurities, non-corrosive liquid.
• Domestic, agricultural and industrial use.
• Big flow rates, medium-low head.MOTOR
• 2 pole induction motor.
• Single phase 220v, 50/60Hz; Three phase 380v,50/60 Hz;
• Insulation: Class B/Class F.
• Protection: IP 44.
• With capacitor and thermal overload protection.OPERATING CONDITIONS
• Suction lift up to 7 m.
• Liquid temperature up to +60°C
• Ambient temperature up to + 40℃.
• Max. Working pressure: 6 bar.Material
• Pump body: Cast iron.
• Motor support: Aluminum
• Impeller: Brass.
• Motor shaft: Stainless steel or CS454.
• Mechanical seal: Ceramic + Graphite or Ceramic-Carbide Alloy + Carbon.
• 100% Copper Winding -
-
Model
Power
Inlet Inch
Outlet Inch
Max Flow(m3/h)
Max Head(m)
Max Suction (m)
DIM.(mm)
Weight (kg)
Single-Phase Three-Phase kW
HP
SHFm5AM
SHF5AM
1.5
2
2"
2"
30
22.5
7
425x250x295
23.5
SHFm5BM
SHF5BM
1.1
1.5
2"
2"
30
20.2
7
425x250x295
24
SHFm6A
SHF6A
2.2
3
3"
3"
72
18.5
7
510x295x355
37
SHFm6B
SHF6B
1.5
2
3"
3"
66
14.7
7
460x285x345
32
SHFm6C
SHF6C
1.1
1.5
3" 3"
60
11.9
7
460x285x345
31
SHFm6AR
SHF6AR
2.2
3
4" 4" 72
18.5
7
510x295x355
39
SHFm6BR
SHF6BR
1.5
2
4"
4"
66
14.7
7
460x285x345
33
SHFmGCR
SHF6BR
1.1
1.5
4"
4"
60
11.9
7
460x285x345
32
