DP Jet pump for deep well
Category：
Summary:
Mainly used for well pumping,river pumping,flowing rain water collection,pumping water out from cellars,garages,basement.
Keywords:
pump deep water
- Details

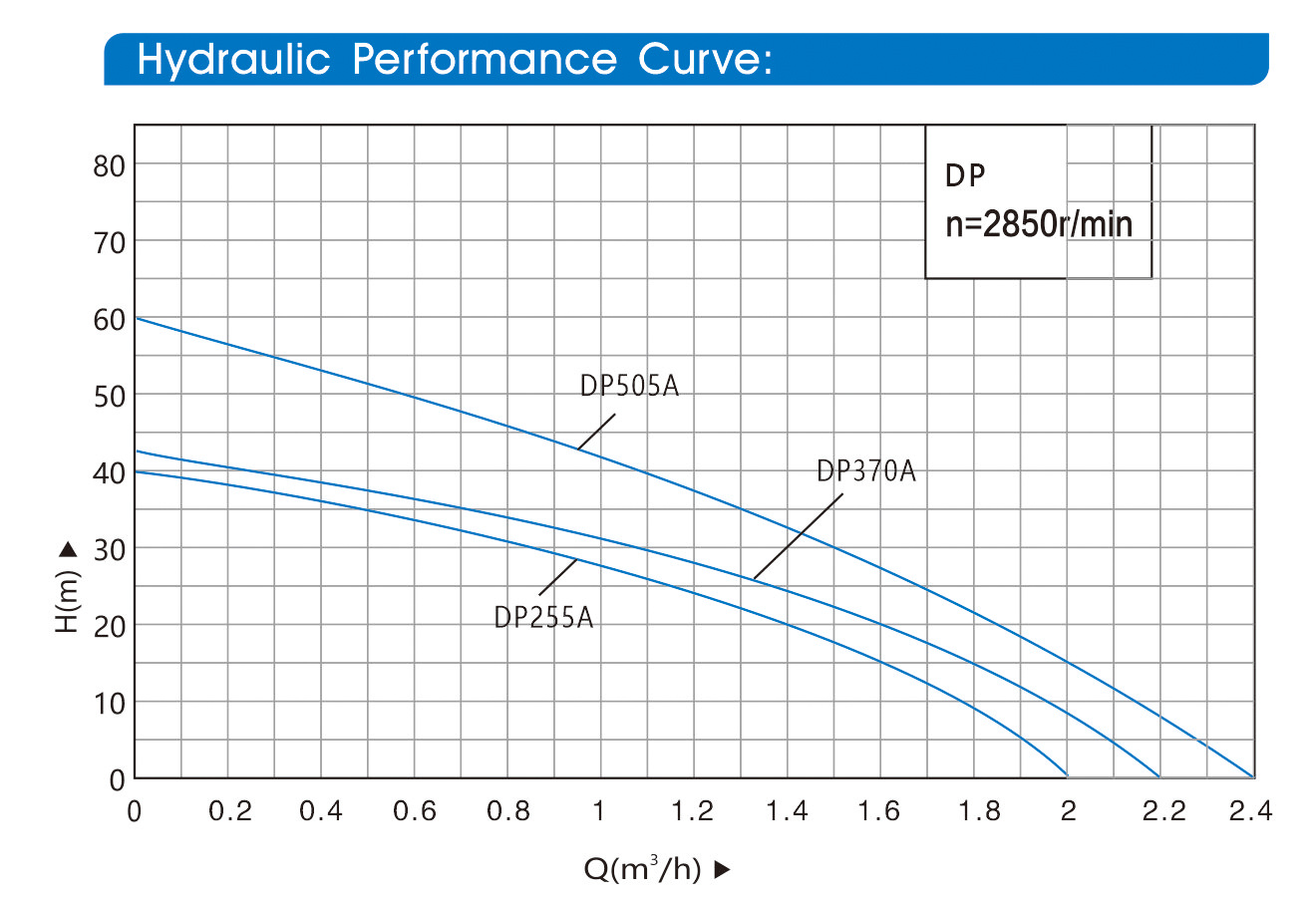

- Graph
- Technical
-
- Commodity name: DP Jet pump for deep well
APPLICATION
• Clean water without abrasive particles.
• Domestic use, irrigation of gardens, allotments, etc.
• Head up to 100 m.
• Bigger suction.
MOTOR
• 2 pole induction motor.
• Single phase 220v, 50/60Hz; Three phase 380v.50/60 Hz;
• Insulation: Class B/Class F.
• Protection: IP 44.
• With capacitor and thermal overload protection
Material
• Pump body: Cast iron.
• Motor support: Aluminum.
• Impeller: Brass / PPO.
• Motor shaft: Stainless steel or CS45#.
• Ejector: Cast iron.
• Mechanical seal: Ceramic + Graphite.
• 100% Copper Winding.
OPERATING CONDITIONS
• Liquid temperature up to +60°C
• Ambient temperature up to +40℃
• Max. Working pressure: 10 bar. -
-
Model
Single-Phase
Power
Inlet Inch
Outlet Inch
Max Flow(m3/h)
Max Head(m)
Max Suction (m)
DIM.(mm)
Weight (kg)
kW
HP
DP255A
0.55
0.75
1.25"/1"
1" 2.0
40
20
415x270x220
14.5
DP370A
0.75
1
1.25"/1" 1"
2.2
42
20
490x235x310
15
DP505A
1.1
1.5
1.25"/1" 1"
2.4
60
20
515x255x320
27
