JET Self-priming jet pump
Category：
Summary:
Mainly used for well pumping,river pumping,flowing rain water collection,pumping water out from cellars,garages,basement.
Keywords:
pump deep water
- Details

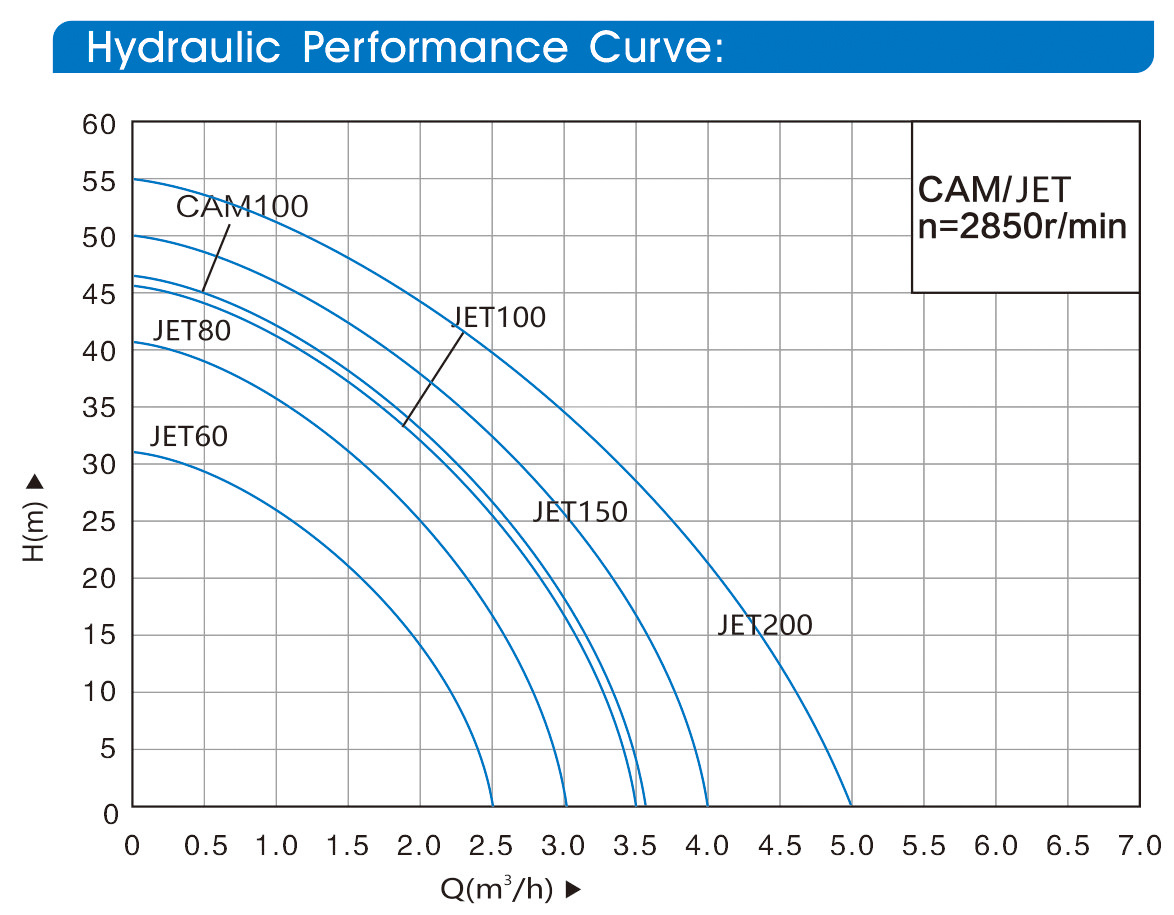

- Graph
- Technical
-
- Commodity name: JET Self-priming jet pump
Material
• Pump body: Cast iron.
• Motor support: Aluminum
• Impeller: Brass/PPO.
• Motor shaft: Stainless steel or CS45#.
• Mechanical seal: Ceramic-Graphite.
• 100% Copper Winding.
OPERATING CONDITIONS
• Suction lift up to 8 m.
• Liquid temperature up to +40°C
• Ambient temperature up to +40 ℃.
• Max. Working pressure: 6 bar.
MOTOR
• 2 pole induction motor.
• Single phase 220v, 50/60Hz
• Insulation: Class B/Class F.
• Protection IP 44.
• With capacitor and thermal overload protection. -
-
Model
Single-Phase
Power
Inlet Inch
Outlet Inch
Max Flow(m3/h)
Max Head(m)
Max Suction (m)
DIM.(mm)
Weight (kg)
kW
HP
CAM100
0.75
1
1"
1" 3.6
47
8
475x190x215
16
JET60
0.37
0.5
1" 1" 2.5
32
9
390x210x230
9.5
JET80
0.55
0.75
1" 1" 3
41
9
475x200x230
14.8
JET100
0.75
1
1" 1"
3.5
46
9
475x200x230
18
JET150
1.1
1.5
1" 1" 4
50
9
475x200x230
18.5
JET200
1.5
2
1.25"
1" 5
55
9
535x240x260
25
