QDX stainless steel pump
QDX stainless steel pump

QDX stainless steel pump

Category：

Submersible pump

Summary:

Mainly used for well pumping,river pumping,flowing rain water collection,pumping water out from cellars,garages,basement.

Keywords:

pump deep water

Get an inquiry

图片名称

Back to list

图片名称
  • Details
  • Graph
  • Technical
    • Commodity name: QDX stainless steel pump

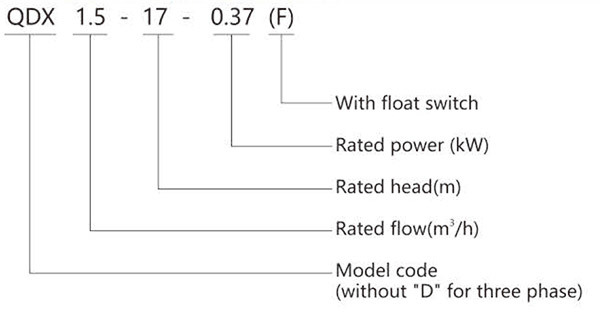

    Model Implication



    APPLICATION
    Clean water without abrasive particals.
    Mainly used for well pumping,river pumping,flowing rain water collection,pumping water out from cellars,garages,basement.
    Water supply,drainage in breeding industry.



    OPERATING LIMITS
    Max. medium temperature +40°C
    Max. ambient temperature +40°C
    PH level from 6.5-8.5
    Maximum sand content is 0.1%. Passage
    of suspended solids up to 0.2mm.
    Voltage fluctuation range: 0.9-1.1 times of
    the rated value
    Immersion depth from 0.5m-5m



    MATERIAL
    Pump body: Stainless steel
    Motor housing: Aluminum/Irom
    Impeller: Aluminum
    Motor wire: Copper
    Mechanical seal: Ceramic&Graphite
    Shaft: 45#steel/stainless steel


    MOTOR INFORMATION
    Two-pole induction motor
    Single phase/three phase, 50/60Hz (on demand)
    Thermal protector for single phase
    Insulation class: B
    Protection class: IPX8

    Keywords:
    • pump

  • Img




  • Model

    Power

    Outlet (Inch)

    Max. Flow (m3/h)

    Max. Head (m)

    DIM.(mm)

    Weight(kg)

    Single-Phase

    Three-Phase

    kW

    HP

    G(s)

    G(t)

    QDX1.5-12-0.25

    —

    0.25

    037

    1

    4.7

    13

    365x165x173

    5

    —

    QDX1.5-17-0.37

    		 —

    0.37

    0.5

    1

    6

    18

    370x160x203

    7

    —

    QDX1.5-25-0.55

    		 —

    0.55

    0.75

    1

    6.5

    26

    370x105x218

    8

    —

    QDX3-18-0.55

    —

    0.55

    0.75

    1.25

    8

    19.5

    370x195x213

    10

    —

    QDXW-12-0.55

    —

    0.55

    0.75

    1.5

    13.8

    15

    370x195x213

    10

    —

    QDX15-7-0.55

    —

    0.55

    0.75

    2

    22

    8

    370x195x238

    10

    —

    QDX1.5-32-0.75

    —

    0.75

    1

    1

    7

    32.5

    380x220x228

    12.5

    —

    QDX3-24-0.75

    —

    0.75

    1

    1.25

    9

    25

    395x195x208

    12.5

    —

    QDX8-18-0.75

    —

    0.75

    1

    1.5

    15

    20

    395x195x228

    11.5

    —

    QDX10-16-0.75

    —

    0.75

    1

    2

    15

    20

    395x195x233

    11.5

    —

    QDX15-10-0.75

    —

    0.75

    1

    2.5

    36

    10

    395x195x253

    12

    —

    QDX25-6-0.75

    —

    0.75

    1

    3

    32

    9.5

    400x170x258

    12

    —

    QDX3-30-1.1

    QDX3-30-1.1

    1.1

    1.5

    1

    9.5

    30

    440x220x205

    15

    14

    QDX15-14-1.1

    QDX15-14-1.1

    1.1

    1.5

    2.5

    28

    17

    425x280x200

    16

    15

    QDX40-6-1.1

    QDX40 6 1.1

    1.1

    1.5

    3

    52

    10

    450x280x200

    18

    17
    —

    QDX40-9-1.5

    1.5

    2

    3

    60.5

    11.2

    450x282x200

    		 —

    18
    —

    QDX25-12-15

    1.5

    2

    2.5

    42

    15

    425x280x200

    		 —

    17
